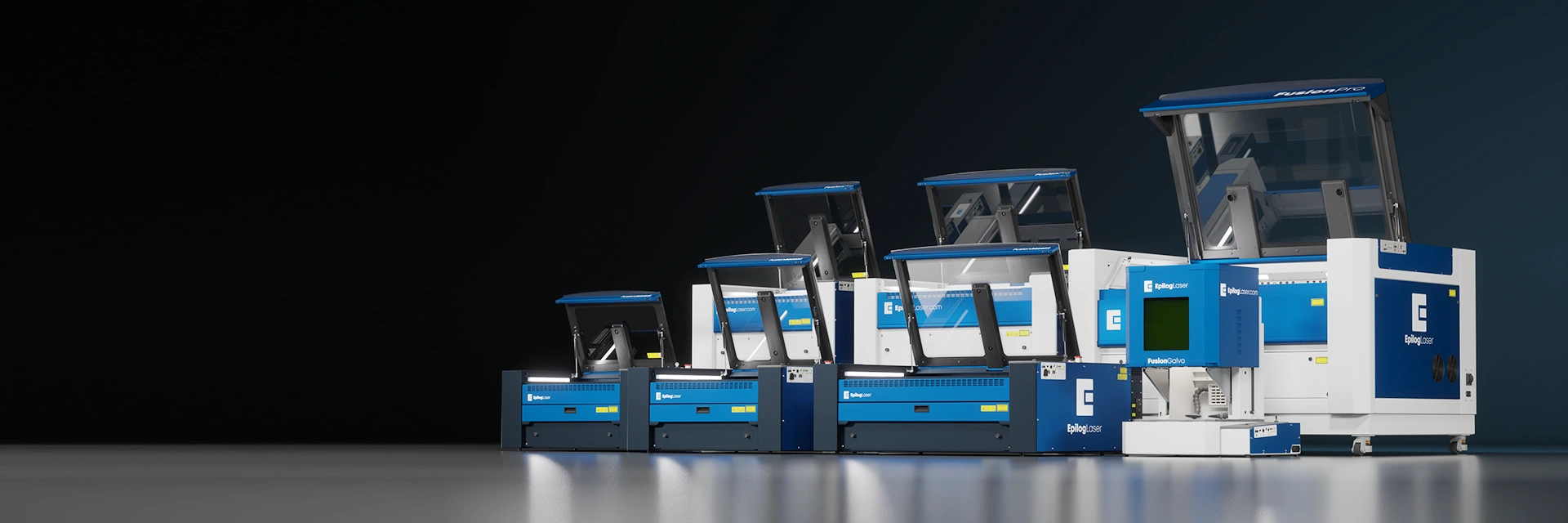

Laser Machine Product Line

Laser engraving, cutting and marking Machines.

Fusion Maker

Starter Series
Meet the Fusion Maker Laser Series, Epilog’s newest starter systems ideal for entrepreneurs, artists, designers, and makers of all kinds. This series features the Fusion Maker 12, a compact system with a 24” x 12” engraving table, as well as the larger Fusion Maker 24 (24” x 24”), and Fusion Maker 36 (36” x 24”). All three systems feature our popular IRIS™ Camera Positioning System, and 60 ips (1.5m/sec) engraving speeds – that’s 25% faster than our previous starter series!

Fusion Edge

Business Series
Epilog’s newest laser machines combine our top-of-the-line technology and our latest features into smaller-format systems, with 120 IPS (3.05 m/s) engraving speed and 5G acceleration.

Fusion Pro

Industrial Series
The Fusion Pro laser series is Epilog Laser’s large format line of laser machines, featuring our largest work area, fastest speeds, and highest engraving quality yet, along with touchscreen controls and our brand-new IRIS™ Camera Positioning system.

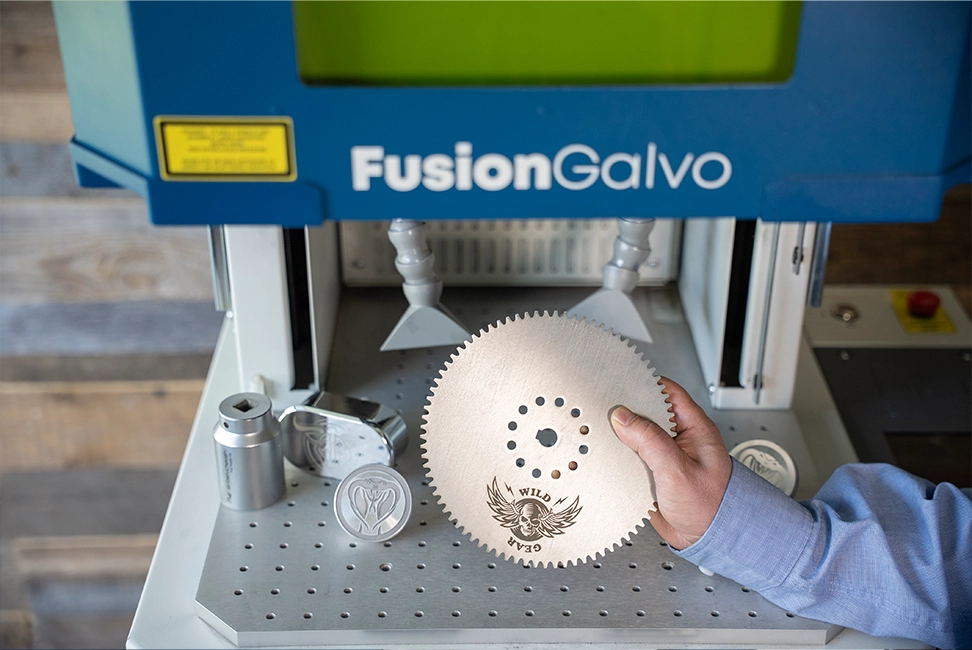

Fusion Galvo

Metal Marking Machine
The Fusion Galvo is Epilog’s industrial metal marking system that features an adjustable work area, lightning fast speeds, and the powerful IRIS™ camera system for quick and precise artwork placement.

Product Line

  • Laser Machine:
  • Maximum Engraving Area:
  • Material Thickness:
  • Laser Source Types:
  • Laser Source Wattages:
  • Print Driver & Software:
  • Internal Memory:
  • Operating Modes:
  • IRIS™ Camera System:
  • Maximum Engraving Speed (inches/meters per second):
  • Acceleration:
  • Super-Silent Cooling Fans:
  • Connectivity:
  • Motion System:
  • Job Trace:
  • Auto Focus:
  • Touch Screen:
  • Status Light:
  • Included Table:
  • Drop Down Door:
  • Air Compressor:
  • Safeguard Features:
  • Class:
  • Fusion Maker 12

    Starter Series
    • Fusion Maker 12 laser machine
    • 24" x 12"
      (610 x 305mm)
    • 7" (178 mm)
    • CO2: Air-cooled, metal/ceramic Waveguide tube, 10.6 micrometers
    • CO2: 30 or 40 watts
    • Laser Dashboard™, Epilog Job Manager™
    • Store multiple files up to 1 GB. Engrave any file size.
    • Optimized Raster, Vector, and Combined mode.
    • 1 overhead
    • 60 IPS (1.5 m/s)
    • 3.5G
    • Included
    • Built-in Ethernet, USB, and Wireless options
    • High-speed stepper motors
    • Included
    • Included
    • Included
    • --
    • Honeycomb Cutting Table
    • --
    • Not included
    • Included
    • Class 2 Laser Product - 1 mW cW MAXIMUM 600-700nm
    • Learn More
  • Fusion Maker 24

    Starter Series
    • Epilog Maker 24 laser machine
    • 24" x 24"
      (610 x 610mm)
    • 10" (254 mm)
    • CO2: Air-cooled, metal/ceramic Waveguide tube, 10.6 micrometers
    • CO2: 40 watts
    • Laser Dashboard™, Epilog Job Manager™
    • Store multiple files up to 1 GB. Engrave any file size.
    • Optimized Raster, Vector, and Combined mode.
    • 2 overhead
    • 60 IPS (1.5 m/s)
    • 3.5G
    • Included
    • Built-in Ethernet, USB, and Wireless options
    • High-speed stepper motors
    • Included
    • Included
    • Included
    • --
    • Honeycomb Cutting Table
    • --
    • Not included
    • Included
    • Class 2 Laser Product - 1 mW cW MAXIMUM 600-700nm
    • Learn More
  • Fusion Maker 36

    Starter Series
    • Epilog Maker 36 laser machine
    • 36" x 24"
      (915 x 610mm)
    • 10" (254 mm)
    • CO2: Air-cooled, metal/ceramic Waveguide tube, 10.6 micrometers
    • CO2: 40 or 50 watts
    • Laser Dashboard™, Epilog Job Manager™
    • Store multiple files up to 1 GB. Engrave any file size.
    • Optimized Raster, Vector, and Combined mode.
    • 2 overhead
    • 60 IPS (1.5 m/s)
    • 3.5G
    • Included
    • Built-in Ethernet, USB, and Wireless options
    • High-speed stepper motors
    • Included
    • Included
    • Included
    • --
    • Honeycomb Cutting Table
    • --
    • Not included
    • Included
    • Class 2 Laser Product - 1 mW cW MAXIMUM 600-700nm
    • Learn More
  • Fusion Edge 12

    Business Series
    • fusion edge 12 laser machine
    • 24" x 12"
      (610 x 305mm)
    • 7" (178 mm)
    • CO2: Air-cooled, metal/ceramic Waveguide tube, 10.6 micrometers
      Fiber: Air-cooled, includes collimator, 1065 nm, Beam quality: M2 < 1.1
    • CO2: 50 or 60 watts
      Fiber: 30 watts
    • Laser Dashboard™, Epilog Job Manager™
    • Store multiple files up to 1 GB. Engrave any file size.
    • Optimized Raster, Vector, and Combined mode.
    • 1 overhead
    • 120 IPS (3.05 m/s)
    • 5G
    • Included
    • Built-in Ethernet, USB, and Wireless options
    • Brushless DC Servo Motors
    • Included
    • Included
    • Included
    • --
    • Honeycomb Cutting Table
    • --
    • Not included
    • Included
    • Class 2 Laser Product - 1 mW cW MAXIMUM 600-700nm
    • Learn More
  • Fusion Edge 24

    Business Series
    • Fusion Edge 24 laser machine
    • 24" x 24"
      (610 x 610mm)
    • 10" (254 mm)
    • CO2: Air-cooled, metal/ceramic Waveguide tube, 10.6 micrometers
    • CO2: 50, or 60 watts
    • Laser Dashboard™, Epilog Job Manager™
    • Store multiple files up to 1 GB. Engrave any file size.
    • Optimized Raster, Vector, and Combined mode.
    • 2 overhead
    • 120 IPS (3.05 m/s)
    • 5G
    • Included
    • Built-in Ethernet, USB, and Wireless options
    • Brushless DC Servo Motors
    • Included
    • Included
    • Included
    • --
    • Honeycomb Cutting Table
    • --
    • Not included
    • Included
    • Class 2 Laser Product - 1 mW cW MAXIMUM 600-700nm
    • Learn More
  • Fusion Edge 36

    Business Series
    • Fusion Edge 36 laser machine
    • 36" x 24"
      (914 x 610mm)
    • 10" (254 mm)
    • CO2: Air-cooled, metal/ceramic Waveguide tube, 10.6 micrometers
    • CO2: 60 watts
    • Laser Dashboard™, Epilog Job Manager™
    • Store multiple files up to 1 GB. Engrave any file size.
    • Optimized Raster, Vector, and Combined mode.
    • 2 overhead
    • 120 IPS (3.05 m/s)
    • 5G
    • Included
    • Built-in Ethernet, USB, and Wireless options
    • Brushless DC Servo Motors
    • Included
    • Included
    • Included
    • --
    • Honeycomb Cutting Table
    • --
    • Not included
    • Included
    • Class 2 Laser Product - 1 mW cW MAXIMUM 600-700nm
    • Learn More
  • Fusion Pro 24

    Industrial Series
    • Fusion Pro 24 laser machine
    • 24" x 24"
      (610 x 610mm)
    • 9" (228 mm)
    • CO2: Air-cooled, metal/ceramic Waveguide tube, 10.6 micrometers
      Fiber: Air-cooled, includes collimator, 1065 nm, Beam quality: M2 < 1.1
    • CO2: 60 or 100 watts
      Fiber: 30 watts
      Dual Source: 60 watts CO2 & 30 watts Fiber, 100 watts CO2 & 50 watts Fiber
    • Laser Dashboard™, Epilog Job Manager™
    • Store multiple files up to 1 GB. Engrave any file size.
    • Optimized Raster, Vector, and Combined mode.
    • 2 overhead + registration
    • 165 IPS (4.2 m/s)
    • 5G
    • Included
    • Built-in Ethernet, USB, and Wireless options
    • Brushless DC Servo Motors
    • Included
    • Included
    • Included
    • Included
    • CO2: Grid Cutting Table
      Fiber/Dual: Task Plate Table
    • Included
    • Not included
    • Included
    • Class 2 Laser Product - 1 mW cW MAXIMUM 600-700nm
    • Learn More
  • Fusion Pro 36

    Industrial Series
    • Fusion Pro 36 laser machine
    • 36" x 24"
      (914 x 610mm)
    • 9" (228 mm)
    • CO2: Air-cooled, metal/ceramic Waveguide tube, 10.6 micrometers
      Fiber (Dual Source Only): Air-cooled, includes collimator, 1065 nm, Beam quality: M2 < 1.1
    • CO2: 60, 80 or 100 watts
      Dual Source: 80 watts CO2 & 30 watts Fiber or 100 watts CO2 & 50 watts Fiber
    • Laser Dashboard™, Epilog Job Manager™
    • Store multiple files up to 1 GB. Engrave any file size.
    • Optimized Raster, Vector, and Combined mode.
    • 2 overhead + registration
    • 165 IPS (4.2 m/s)
    • 5G
    • Included
    • Built-in Ethernet, USB, and Wireless options
    • Brushless DC Servo Motors
    • Included
    • Included
    • Included
    • Included
    • CO2: Grid Cutting Table
      Dual: Task Plate Table
    • Included
    • Not included
    • Included
    • Class 2 Laser Product - 1 mW cW MAXIMUM 600-700nm
    • Learn More
  • Fusion Pro 48

    Industrial Series
    • Fusion Pro 48 laser machine
    • 48" x 36"
      (1219 x 914mm)
    • 12.25" (311 mm)
    • CO2: Air-cooled, metal/ceramic Waveguide tube, 10.6 micrometers
      Fiber: Air-cooled, includes collimator, 1065 nm, Beam quality: M2 < 1.1
    • CO2: 80 or 120 watts
      Dual Source: 120 watts CO2 & 50 watts Fiber
    • Laser Dashboard™, Epilog Job Manager™
    • Store multiple files up to 1 GB. Engrave any file size.
    • Optimized Raster, Vector, and Combined mode.
    • 2 overhead + registration
    • 165 IPS (4.2 m/s)
    • 5G
    • Included
    • Built-in Ethernet, USB, and Wireless options
    • Brushless DC Servo Motors
    • Included
    • Included
    • Included
    • --
    • CO2/Dual: Task Plate Table
    • Included
    • Included
    • Included
    • Class 2 Laser Product - 1 mW cW MAXIMUM 600-700nm
    • Learn More
  • Fusion Galvo

    Metal Marking Machine
    • Fusion Galvo laser machine
    • Max 6" x 6"
      (152 x 152mm)
    • F163: 10" (254 mm) F254: 6" (152 mm)
    • Fiber: Air-cooled, 1064nm
    • Fiber: 30-watt pulsed, 30-watt MOPA, or 60-watt MOPA fiber configurations
    • Laser Dashboard™, Epilog Job Manager™
    • Store multiple files up to 1 GB. Engrave any file size.
    • Engraving and Marking
    • 2 overhead
    • 200 IPS (5.08 m/s)
    • --
    • Included
    • Built-in Ethernet, USB, and Wireless options
    • --
    • Included
    • Included
    • Included
    • --
    • Breadboard table with tapped holes on 25 mm centers
    • Mechanized front door
    • --
    • Included
    • Class 2 Laser Product - 1 mW cW MAXIMUM 600-700nm
    • Learn More

Technical specifications and product configurations subject to change without notice.
