Fusion Pro Laser Series

Industrial Laser engraving, cutting and marking.

Epilog Fusion Pro 24, 36, and 48 laser engraving machine

Fusion Pro Laser Machines

Industrial Series – 24, 36 & 48

Featuring up to 165 IPS (4.2 m/s) engraving speeds, 5g acceleration, and a variety of wattage configurations, the easy to use Fusion Pro Laser Series from Epilog can help you improve your business laser workflow, productivity and expand your customer base with more product offerings.

Comprised of the Fusion Pro 24, 36, and 48, all the machines in the Pro Series feature Epilog’s revolutionary IRIS™ Camera System with Positioning and Registration cutting features gives laser operators a live-preview of the engraving table so they can quickly and accurately position their artwork on even the most uniquely shaped items.

Epilog’s Fusion Pro lasers are a valuable investment for businesses needing to increase productivity, versatility, and precision in their production and industrial application environments.

CLOSER LOOK:

Take an in-depth look at the feature-packed Fusion Pro laser machines.
request pricing and free samples

Request Free Samples and Information

Receive brochures and samples, and get more info from us or your local distributor.

"*" indicates required fields

Address:
I represent a school or university
Sign me up for the Epilog E-Newsletter
I agree to receiving marketing emails and special promotions
This field is for validation purposes and should be left unchanged.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Laser Machine: Fusion Pro 24 Fusion Pro 36 Fusion Pro 48
Work Area: 24” x 24” x 9″
(610 x 610 x 228 mm) 		36” x 24” x 9″
(914 x 610 x 228 mm) 		48” x 36” x 12.25″
(1219 x 914 x 311 mm)
Laser Options: CO2, Fiber, or Dual Source CO2 or Dual Source CO2 or Dual Source
CO2: 60 or 100 watts 60, 80, 100, 120, or 200 watts 80, 100, 120, or 200 watts
Fiber: 30 watts n/a n/a
Dual Source:
  • 60 watt CO2 and 30 watt Fiber lasers
  • 100 watt CO2 and 50 watt Fiber lasers
  • 80 watt CO2 and 30 watt Fiber lasers
  • 100 watt CO2 and 50 watt Fiber lasers
  • 100 watt CO2 and 50 watt Fiber lasers
  • 120 watt CO2 and 50 watt Fiber lasers
IRIS™ Cameras: 2 overhead + registration 2 overhead + registration 2 overhead + registration
More Tech Specs

FEATURES: Benefits of the Fusion Pro Laser System

The Fusion Pro laser engraving and cutting machines from Epilog are our top-of-the-line laser systems and combine a large work area with the latest technological features, including:
High speed engraving over a large marking area.

Highest-Speed Engraving Over Largest Work Area

Fusion Maker IRIS Camera

IRIS™ Camera Positioning

Learn More
Fusion Pro touchscreen controls

Touch Screen at the Laser

Epilog Laser headquarters building

Engineered & Manufactured in the USA

Ethernet, USB, and Wireless connections

Network Your Laser Across Your Business

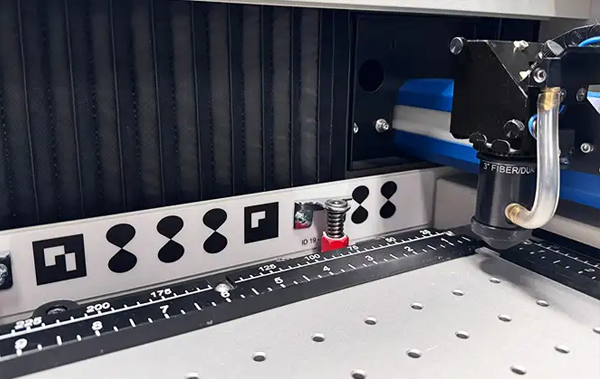

Fusion Pro Safeguard features

SAFEGUARD™ Features

Fusion Pro laser head air assist

Air Assist and Compressor

PRO 48
Fusion Pro 24 and 36 laser head air assist

Air Assist

PRO 24 & 36
Fusion Pro engraving table

Split Table

PRO 48
Radiance Beam Enhancing Optics diagram

Radiance™ Beam Enhancing Optics

CO2 laser tube

CO2 Waveguide Laser Tubes by Epilog

Fusion Pro Epilog Software Suite

1 GB Memory in the Machine

Steel bearings

Long-Life Steel Bearing

PrintAPI

PrintAPI

Process & Workflow Integration Learn More
Epilog Pulse

Epilog Pulse

Mac Compatible Learn More
Product features and configurations subject to change without notice.

ACCESSORIES: Upgrade your laser system

Fusion Pro laser head

Dual Source Option

CO2 and Fiber
Are you looking for the material versatility of a CO2 laser in addition to the direct metal etching of a fiber laser? Add on the dual source option to your Fusion Pro by choosing both a CO2 laser (50, 60, 80, or 120 watts) and a fiber laser (30 or 50 watts) to work with a wider range of materials.
air compressor for the air assist feature for clean cuts

Air Assist Pump

Compressor
This high-quality air compressor blows a constant stream of air across the cutting area, which removes heat and combustible gases from the work area and provides the best cutting results available. The rubber vibration-dampening feet reduce the noise level of the compressor, and connection is a breeze with our quick-connect inlet and outlet ports on the compressor and the laser system.
Shop Now
3-jaw chuck rotary device

3-Jaw Chuck

Rotary Attachment
With the 3-Jaw Chuck rotary, objects are clamped into the device’s 3-jaw chuck, allowing you to rotate cylindrical or oddly-shaped items in applications that demand more precise alignment.
Rim-style rotary device

Rim-Style

Rotary Attachment
The Rim-Style rotary attachment adds the ability to engrave bottles, glasses, flashlights, or any other cylindrical item. The rotary attachment is as easy to set up as placing your product on the rotary, raising or lowering the scissor lift to level the engraving area, and printing to the laser.
Fusion Pro Task Plate

Task Plate

Engraving Table

The optional Task Plate for the Fusion Pro 24 and 36 offers you the flattest option for engraving pieces that require the most consistent engraving across a large area. These single panel tables are easily inserted and removed from the machine, and are ideal for engraving materials that are very sensitive to focus variation.

Note: The Task Plate is included with the Fusion Pro 48.

Fusion Pro Slat Cutting Table

Slat Table

Laser Cutting
Designed for larger pieces of material, the optional slat-style vector table greatly reduces the points of contact between the material you are cutting and the work table, significantly reducing backside burning and providing optimal airflow for the removal of dust and debris.
Fusion Pro Grid Cutting Table

Vector Grid

Grid Cutting Table
Optional on the Pro 24/36 (Dual source) and Pro 48 models, the Grid Cutting Table is ideal for most cutting applications. The grid table limits how much of the surface area of your piece contacts the work table, reducing backside burning and providing greater air circulation while still accommodating smaller material stock. The Grid Table is included with the Fusion Pro 24/36 CO2 models.
Laser system lenses

1.5″ Optional Lens (24/36)

Highest-Resolution Engraving

Although the standard 2.0-inch lens provides amazing detail, our 1.5-inch optional lens assembly is designed for the highest-resolution engraving and etching of extremely small fonts.

Note: For Fusion Pro 24 and 36 only

Shop Pro 24/36
Laser system lenses

4.0″ Optional Lens (24/36)

Cutting Thicker Materials

The 4″ optional lens produces a focused beam over a longer vertical distance, which makes it ideal for cutting through very thick materials.

Note: For Fusion Pro 24 and 36 only

*Cannot be used in conjunction with IRIS™ Camera System

Shop Pro 24/36
Fusion Pro 48 4 inch lense

4.0″ Optional Lens (48)

Cutting Thicker Materials

The 4″ optional lens produces a focused beam over a longer vertical distance, which makes it ideal for cutting through very thick materials.

Note: For Fusion Pro 48 only

*Cannot be used in conjunction with IRIS™ Camera System

Shop Pro 48
PhotoLaser Plus Advanced software and engraved photo samples

PhotoLaser Plus

Design Software
PhotoLaser Plus takes photo engraving with your Epilog laser to the next level by easily processing photos for engraving on all types of materials. Epilog Laser has partnered with CADLink to bring you the industry’s best photo processing software: PhotoLaser Plus. The easy-to-use software interface and powerful photo processing tools allow you to create the highest-quality photo engravings in the industry.

    MATERIAL COMPATIBILITY: Quick guide for your Epilog Laser Machine

    wood engaving cutting board

    Layered Sign

    Amazing Detail!
    wood engaving rollingpins

    Acrylic Sign

    Amazing Detail!
    acrylic layered sign

    Numbered Sign

    Amazing Detail!
    acrylic layered sign

    Acrylic LED Sign

    Amazing Detail!
    acrylic layered sign

    Acrylic Employee Sign

    Amazing Detail!
    wood engaving rollingpins

    Engraving iPad

    Amazing Detail!
    wood engaving rollingpins

    Water Bottles

    Amazing Detail!
    wood engaving rollingpins

    Photo on Leather

    Amazing Detail!
    wood engaving rollingpins

    Engraving on Hats

    Amazing Detail!
    wood engaving cutting board

    Leather Journal

    Amazing Detail!
    wood engaving rollingpins

    Pet Accessories

    Amazing Detail!
    wood engaving rollingpins

    Leather Pillows

    Amazing Detail!
    wood engaving rollingpins

    Wine Bottles

    Amazing Detail!
    wood engaving rollingpins

    Shot Glasses

    Amazing Detail!
    wood engaving rollingpins

    Pint Glasses

    Amazing Detail!
    wood engaving rollingpins

    3D Cardboard Rhino

    Amazing Detail!
    wood engaving rollingpins

    Paper Monsters

    Amazing Detail!
    wood engaving rollingpins

    Layered Carboard Wave

    Amazing Detail!
    wood engaving cutting board

    Laser Engraved Packaging

    Amazing Detail!
    wood engaving rollingpins

    Amazing Detail!

    Amazing Detail!
    wood engaving rollingpins

    Wood
    House

    Amazing Detail!
    wood engaving rollingpins

    Wedding Photos

    Amazing Detail!
    wood engaving cutting board

    Cutting Board

    Amazing Detail!
    wood engaving rollingpins

    Wine Phone Booth

    Amazing Detail!
    wood engaving rollingpins

    Ornate Detail

    Amazing Detail!
    wood engaving rollingpins

    Rolling Pins

    Amazing Detail!

    Fusion Pro CO2 Material Compatibility

    Quick guide for your Epilog Laser Machine

    Material Engrave Cut
    Acrylic
    Anodized Aluminum
    Ceramic
    Cloth
    Coated Metals
    Corian
    Cork
    Delrin
    Fabric
    Fiberglass
    Glass
    Leather
    Marble
    Matte Board
    Melamine
    Mother of Pearl
    Mylar
    Painted Metals
    Paper
    Plastic
    Pressboard
    Rubber
    Tile
    Wood
    Wood Veneer
    Stainless Steel *
    Brass *
    Titanium *
    Bare Metals *
    * CO2 lasers will mark bare metals when coated with a metal marking solution. For more information, visit our laser metal marking page.
    Do you have a material you would like us to test? Our Applications Team would be happy to assist you.

    Fusion Pro Fiber Material Compatibility

    With an Epilog Fiber laser, mark a wide array of metals and engineered plastics.

    17-4 PH stainless steel 303 stainless 4043 steel 6061 Aluminum
    ABS (white/black) Aluminum, 6061 Aluminum, yellow chromate Bayer 2807 Makrolon polycarbonate
    Bayers bayblend FR110 Black/white ABS Black/white polycarbonate Brass
    Brushed aluminum Carbon nanotube Ceramics, metal-plated Clear coat anodized aluminum
    Cobalt chrome steel Colored delrin (black/brown) Compacted powder iron with phosphate coating Copper
    DAP – Diallyl Phthalate Delrin, colored (black/brown) GE Plastics polycarbonate resin 121-R Glass filled PEEK
    Glass filled Teflon Hard coat anodized aluminum Inconel metals (various) Machine tool steel
    Magnesium Metal-plated ceramics Molybdenum Nickel plated 1215 mild steel
    Nickel plated brass Nickel plated gold Nickel plated Kovar Nickel plated steel
    Nylon PEEK, white Polybutylene Terephthalate Polycarbonate (black/white)
    Polycarbonate resin 121-R, GE Plastics Polycarbonate, Bayer 2807 Makrolon Polysulphone Rynite PET
    Santoprene Silicon carbide Silicon steel Silicone wafers
    Stainless steel 303 Stainless steel 17-4 PH Steel 4043 Steel, machine tool
    Various inconel metals (nickel-chromium super alloys) White PEEK Yellow chromate aluminum Zinc plated mild steel
    And Many More!

    Technical Specifications: Fusion Pro 24, 36, and 48 Laser Machines

    The Fusion Pro laser engraving and cutting machines from Epilog are our top-of-the-line laser systems and combine a large work area with the latest technological features, including:
    Laser Machine:

    FUSION PRO 24

    Industrial Series

    Fusion pro laser machine

    FUSION PRO 36

    Industrial Series

    fusion pro laser machine

    FUSION PRO 48

    Industrial Series

    fusion pro laser machine
    Work Area:
    		 24″ x 24″ (610 x 610mm) 36″ x 24″ (914 x 610mm) 48″ x 36″ (1219 x 914mm)
    Material Thickness:
    		 9″ (228 mm) 9″ (228 mm) 12.25″ (311 mm)
    Laser Tube Types:
    • CO2: air-cooled, metal/ceramic Waveguide tube, 10.6 micrometers
    • Fiber: air-cooled, includes collimator, 1065 nm, Beam quality: M2 < 1.1
    • Dual Source
    • CO2: air-cooled, metal/ceramic Waveguide tube, 10.6 micrometers
    • Dual Source
    • CO2: air-cooled, metal Waveguide tube, 10.6 micrometers
    • Fiber: air-cooled, includes collimator, 1065 nm, Beam quality: M2 < 1.1
    • Dual Source
    Laser Tube Wattages:
    • CO2: 60 or 100 watts
    • Fiber: 30 watts
    • Dual Source: 60 watts CO2 & 30 watts Fiber or 100 watts CO2 & 50 watts Fiber
    • CO2: 60, 80, 100, 120, or 200 watts
    • Dual Source: 80 watts CO2 & 30 watts Fiber or 100 watts CO2 & 50 watts Fiber
    • CO2: 80, 100, 120, or 200 watts
    • Dual Source: 100 watts CO2 & 50 watts Fiber or 120 watts CO2 & 50 watts Fiber
    IRIS™ Camera System:
    		 2 overhead + registration 2 overhead + registration 2 overhead + registration
    Wireless Connectivity:
    		 Included Included Included
    Included Lenses:
    • CO2: 2″
    • Fiber & Dual Source: 3″
    • CO2: 2″
    • Fiber & Dual Source: 3″
    • CO2: 2″
    • Fiber & Dual Source: 3″
    Optional Lenses:
    		 CO2: 1.5″ or 4″ CO2: 1.5″ or 4″ CO2: 4″
    Resolution:
    		 Fully-flexible & user-controlled from 75 – 1200 dpi Fully-flexible & user-controlled from 75 – 1200 dpi Fully-flexible & user-controlled from 75 – 1200 dpi
    Maximum Engraving Speed (inches/meters per second):
    		 165 IPS (4.2 m/s) with 5G acceleration. Computer-controlled in .001 increments up to 100%. Color mapping feature links Speed, Power, Frequency, and Raster/Vector mode.
    Print Driver & Software:
    		 Laser Dashboard™, Epilog Job Manager™ Laser Dashboard™, Epilog Job Manager™ Laser Dashboard™, Epilog Job Manager™
    Internal Memory:
    		 Store multiple files up to 1 GB. Engrave any file size. Store multiple files up to 1 GB. Engrave any file size. Store multiple files up to 1 GB. Engrave any file size.
    Operating Modes:
    		 Optimized Raster, Vector, and Combined mode. Optimized Raster, Vector, and Combined mode. Optimized Raster, Vector, and Combined mode.
    Super-Silent Cooling Fans:
    		 Included Included Included
    Motion System:
    		 Brushless DC Servo Motors Brushless DC Servo Motors Brushless DC Servo Motors
    X-Axis Bearings:
    		 Ground & polished stainless steel, Teflon-coated, self-lubricating bearings. Dual blocks on X-axis for greater rigidity
    Belts:
    		 Advanced B-style double-wide Kevlar precision drive belts. Advanced B-style double-wide Kevlar precision drive belts. Advanced B-style double-wide Kevlar precision drive belts.
    Job Trace:
    		 Included Included Included
    Auto Focus:
    		 Included Included Included
    Touch Screen:
    		 Included Included Included
    Status Light:
    		 Included Included —
    Included Table:
    • CO2: Vector Cutting Table (Grid-Style)
    • Dual Source: Task Plate (Vector Grid Optional)
    • Fiber: Task Plate
    • CO2: Vector Cutting Table (Grid-Style)
    • Dual Source: Task Plate (Vector Grid Optional)
    • CO2: Task Plate (Vector Grid Optional)
    • Dual Source: Task Plate (Vector Grid Optional)
    Drop Down Door:
    		 Included Included Included
    Air Assist Pump:
    		 Optional Optional Included
    Max Table Weight:
    Static: Vector Grid, 60 lbs (27.2 kg)
    Static: Task Plate, 90 lbs (40.8 kg)
    Lifting: 60 lbs (27.2 kg)
    Static: Vector, 85 lbs (38.6 kg)
    Static: Task Plate, 150 lbs (68 kg)
    Lifting: 85 lbs (38.6 kg)
    Size (W x D x H):
    		 41.52” x 32.81” x 40.54″
    1055 x 834 x 1029 mm    		 53.52” x 32.81” x 40.54″
    1359 x 834 x 1029 mm    		 70.6” x 51.3″ x 42.75″
    1794 x 1304 x 1086 mm
    Pedestal removed: 34” H (863 mm)
    Weight:
    		 240 lbs (108 kg) 275 lbs (124 kg) 650 lbs (295 kg)
    Electrical:
    Auto-switching 100-120 volts. Amp draw-MAX: 13A
    Auto-switching 220-240 volts. Amp draw-MAX: 6.5A
    50 or 60 Hz, single phase
    		 Auto-switching 220-240 volts. 6.5 Amp draw-MAX (50w, 60w, 80w). 10 Amp draw-MAX (120w).
    50 or 60Hz, single phase
    Ventilation:
    		 350-400 CFM (595-680 m3/hr) external exhaust to outside or internal filtration unit required. One output port, 4″ (102 mm) diameter Three total ports. Two upper exhaust ports, one lower vacuum table port. Total 735 CFM required. All ports 4” (102mm).
    Safeguard Features:
    		 Included Included Included
      Class:
    Class 2 Laser Product – 1 mW cW MAXIMUM 600-700nm
    Technical specifications and product configurations subject to change without notice.

    Request More Information

    Request More Information

    Receive brochures and samples,
    and get more info from your local distributor.
    Contact Us
