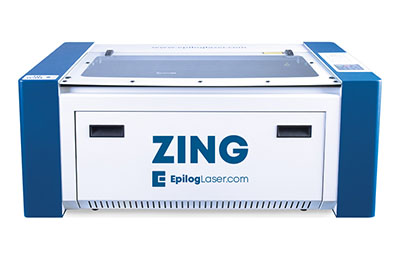

The entry-level laser machines in the Zing series produce anything but entry-level engraving and cutting results. These low-cost desktop units are the perfect choice for someone starting a business or looking to add on a second laser.
Up your production capabilities with a Legend laser series system. Featuring up to 1200 dpi engraving and servo motors for up to 30% more speed, the Legend laser series includes three popular models: the Epilog Mini 18, Mini 24, and Helix laser systems.

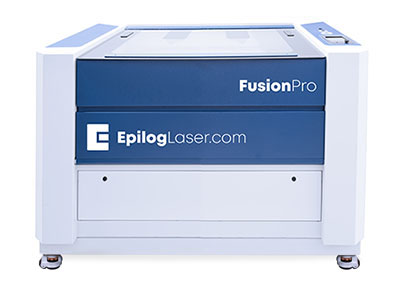

The Fusion Pro laser series is the newest addition to Epilog Laser’s line of laser machines, featuring our largest work area, fastest speeds, and highest engraving quality yet, along with touchscreen controls and our brand-new IRIS™ Camera Positioning system.

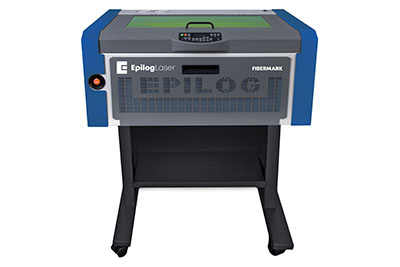

Engrave barcodes, serial numbers & logos on bare metal and etch plastic parts and tools. This flatbed flying-optics driven system is the perfect solution for engraving on bare metal and plastic parts at a low cost.

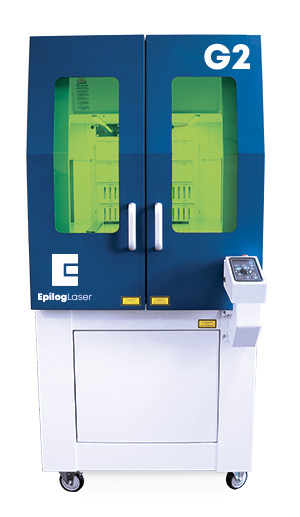

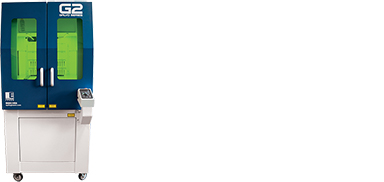

With unique dynamic-focus lens technology, the G2 Galvo fiber laser is the first galvo unit with a fixed-position 24" x 24" (609 x 609 mm) engraving area.
| Zing 16 | Zing 24 | Mini 18 | Mini 24 | Helix | FiberMark 24 | Fusion Pro 32 | Fusion Pro 48 | G2 | epi|
|---|---|---|---|---|---|---|---|---|---|
Learn More
|
Learn More
|
Learn More
|
Learn More
|
Learn More
|
Learn More
|
Learn More
|
Learn More
|
Learn More
|
|
| Maximum Engraving Area | 16" x 12" (406 x 305 mm) | 24" x 12" (610 x 305 mm) | 18" x 12" (457 x 305 mm) | 24" x 12" (610 x 305 mm) | 24" x 18" (610 x 457 mm) | 24" x 12" (610 x 305 mm) | 32" x 20" (812 x 508 mm) | 48" x 36" (1219 x 914 mm) | 24" x 24" (609 x 609 mm) |
| Maximum Material Thickness | 4.5" (114 mm) | 7.75" (197 mm) | 4" (102 mm). Remove table for 6" (152 mm) depth and 17.5" x 10" (444 x 254 mm) engraving area. | 5.5" (140 mm). Remove table for 8" (203 mm) depth and 23.5" x 11.75" (597 x 298 mm) engrvaing area. | 8.5" (216 mm). Remove table for 11" (279 mm) depth and 23.5" x 17" (597 x 432 mm) engraving area. | 5.0" (127 mm) | 12.25" (311 mm) |
4" x 4" (101 mm) table: 36.3" (923 mm) 16" x 16" (406 mm) table: 25.98" (660 mm) 24" x 24" (609 mm) table: 15.79" (401 mm) |
|
| Laser Tube Types | CO2 Laser (air-cooled, all-metal Waveguide tube, 10.6 micrometers) | Fiber Laser (air-cooled, includes collimator. 1065 nm. Beam quality: M2 < 1.1) |
CO2 (air-cooled, metal Waveguide tube, 10.6 micrometers) Fiber (air-cooled, includes collimator, 1065 nm, Beam quality: M2 < 1.1) |
Fiber Laser (Fixed Pulse or Variable Pulse (MOPA), air-cooled) | |||||
| Laser Tube Wattages | 30 and 40 watts | 30, 40, 50, and 60 watts | 30 and 40 watts | 30, 40, 50, and 60 watts | 30, 40, 50, 60, and 80 watts | 30 or 50 watts |
CO2: 50, 60, 80, or 120 watts Fiber: 30 or 50 watts Dual source - Configure with both CO2 & Fiber sources |
30 and 50 watts | |
| Print Driver & Software | Laser DashboardTM, Epilog Job ManagerTM | ||||||||
| Internal Memory | Store multiple files up to 64 MB. Rolling buffer allows files of any size to be engraved. | Store multiple files up to 1 GB. Engrave any file size. | Store multiple files. Rolling buffer allows large files to be engraved. | ||||||
| Operating Modes | Optimized Raster, Vector, and Combined mode. | Optimized Vector Mode | |||||||
